交换机设置:如何在两个交换机之间建立互通?

  交换机设置:如何在两个交换机之间建立互通?

  网络如何互操作?

  通常,两台计算机如何相互通信?他们怎么不能互相拜访?

  较简单的方法是使用网段来解决,让我们举个例子。

  (1)两台计算机无法互相访​​问

  假设:

  PC1 IP地址:192.168.1.1/24

  PC2 IP地址:192.168.2.1/24

  测试PC1和PC2之间的连通性:较简单的方法是使用PC1到PingPC2并检查Ping结果。

  显然,ping操作失败。PC1和PC2的IP位于不同的网段中,因此无法ping通。

  那么什么样的情况可以ping通呢?

  (2)如何互通

  假设:

  PC1 IP地址:192.168.1.1/24

  PC2 IP地址:192.168.1.2/24

  PC3 IP地址:192.168.1.3/24

  如果它们都在同一网段中,请测试pc1是否可以与pc2和pc3通信,只需使用pc1对ping pc2和pc3进行ping操作即可。

  pc1到ping pc2

  [ PC> ping 192.168.1.2

  Ping 192.168.1.2:32个数据字节,按Ctrl_C断开

  从192.168.1.2开始:字节= 32 seq = 1 ttl = 128时间= 32 ms

  从192.168.1.2:字节= 32 seq = 2 ttl = 128时间= 31 ms ]

  pc1至ping pc3

  [ PC> ping 192.168.1.3

  Ping 192.168.1.3:32个数据字节,按Ctrl_C断开

  从192.168.1.3开始:字节= 32 seq = 1 ttl = 128时间= 31 ms

  从192.168.1.3开始:字节= 32 seq = 2 ttl = 128时间= 31 ms ]

  显然,两者都可以ping通,因为PC1-PC3位于同一网段中,并且使用相同的网关。

  因此,问题是,如何使同一网段的IP不相互通信?如何使不同网段的IP相互通信?这里我们需要介绍VLAN。

  划分VLAN以实现相互访问和网络阻塞

  上面我们已经展示了较简单的网络互操作性和互操作性。如果没有其他设置,则同一网段的IP地址可以通信,但不同网段的IP地址不能通信。在实际项目中,并不是那么简单。让我们看一下如何实现不同VLAN和不同网段之间的互通和阻塞。

  假设:

  PC1 IP地址:192.168.1.1/24,连接到LSW1交换机,端口以太网0/0/1

  PC2 IP地址:192.168.1.2/24,已连接到LSW1交换机,端口以太网0/0/2

  PC3 IP地址:192.168.1.3/24,连接到LSW1交换机,端口以太网0/0/3

  PC4 IP地址:192.168.1.4/24,已连接到LSW2交换机,端口以太网0/0/1

  现在,让PC1和PC2彼此通信,让PC1和PC3无法彼此通信,以及PC1和PC4无法彼此通信。如何配置交换机?(今天以华为交换机为例)。

  (1) Set LSW1 Switch

  system-view: Enter system view

  [Huawei]sysname sw1: Name the switch

  [sw1]vlan 10: Create VLAN10

  [sw1-vlan10]vlan 20: Create VLAN20

  [sw1-vlan20]display vlan: Display VLAN information

  [sw1-vlan20]quit : Return to the previous view

  [sw1]interface Ethernet 0/0/1: Enter the Ethernet interface 0/0/1

  [sw1-Ethernet0/0/1]port link-type access: Configure the interface type as Access

  [sw1-Ethernet0/0/1]port default vlan 10: Assign interface to VLAN10

  [sw1-Ethernet0/0/1]quit: Return to the previous view

  [sw1]interface Ethernet 0/0/2: Enter Ethernet interface 0/0/2

  [sw1-Ethernet0/0/2]port link-type access: Configure the interface type as Access

  [sw1-Ethernet0/0/2]port default vlan 10: Assign interface to VLAN10

  [sw1-Ethernet0/0/2]quit: Return to the previous view

  [sw1]interface Ethernet 0/0/3: Enter Ethernet interface 0/0/3

  [sw1-Ethernet0/0/3]port link-type access: Configure the interface type as Access

  [sw1-Ethernet0/0/3]port default vlan 20: Assign interface to VLAN20

  [sw1-Ethernet0/0/3]display vlan: Display VLAN information

  Summary: In LSW1, pc1 and pc2 are allocated to vlan10, and pc3 is allocated to vlan20.

  (2) Set LSW2 Switch

  The commands are similar to the above, so I won’t comment one by one.

  system-view

  [Huawei]sysname sw2

  [sw2]vlan 10: Create VLANs in batches

  [sw2]display vlan

  [sw2]interface Ethernet 0/0/1: Enter the Ethernet interface 0/0/1 of pc4

  [sw2-Ethernet0/0/1]port link-type access: Configure the interface type as Access

  [sw2-Ethernet0/0/1]port default vlan 10: Assign interface to VLAN10

  [sw2-Ethernet0/0/2]display vlan

  In LSW2, pc4 is mainly divided into vlan10

  (3)验证VLAN

  ping PC1和PC2的连接。



  由于它们位于相同的VLAN和相同的网段中,因此PC1和PC2可以ping通。

  b。ping PC1和PC3的连接

   尽管PC1和PC3的IP地址在同一网段中,但PC1和PC3不在同一VLAN中,因此PC1和PC3无法被ping通(PC1属于vlan10,PC3属于vlan20)。

  c。ping PC1和PC4的连接

   显然,PC1和PC4无法ping通。为什么是这样?

  尽管PC1和PC4在相同的VLAN中,并且在同一网段中,但Lsw1和Lsw2交换机未配置中继端口,并且访问端口未标记中继端口,因此ping操作会失败!

  所以问题是,pc1和pc4如何相互通信?

  如何使交换机彼此通信

  如上所述,pc1属于LSW1交换机,PC2属于SLW2交换机。尽管PC1和PC4划分为相同的VLAN,并且IP地址位于相同的网段中,但它们仍无法相互通信,这主要是因为未配置中继接口。让我们对其进行配置。

  (1)设置LSW1Switch

  (1) Set LSW1Switch

  [sw1]interface Ethernet 0/0/4: Enter the interface 0/0/4 connecting switch 1 and switch 2

  [sw1-Ethernet0/0/4]port link-type trunk: Configure the interface type as trunk

  [sw1-Ethernet0/0/4]port trunk allow-pass vlan 10 20: VLAN10 and vlan20 allowed through the trunk port.

  (2) Set LSW2 Switch

  [sw2]interface Ethernet 0/0/3: Enter the interface 0/0/3 connecting switch 1 and switch 2

  [sw2-Ethernet0/0/3]port link-type trunk: Configure the interface type as trunk

  [sw2-Ethernet0/0/3]port trunk allow-pass vlan 10 20: VLAN10 and vlan20 allowed through the trunk port.

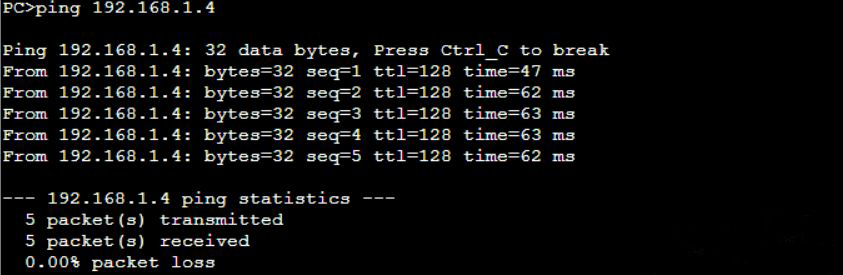

  (3)验证中继接口配置:



验证中继接口配置



  PC1和PC4可以ping通,因为在交换机之间设置了中继接口,以便不同的VLAN可以通过其他交换机!

  较后,让我们总结一下:

  在什么情况下我们将划分VLAN?

  只有在逻辑上隔离网络时,才会划分VLAN!在不同的VLAN中,即使在同一网段中,也无法成功ping通。

  在什么情况下我们将配置中继接口?



  要将交换机连接到交换机,您需要设置中继接口。
