思科交换机

当前位置: 首页>>产品展示>>思科交换机

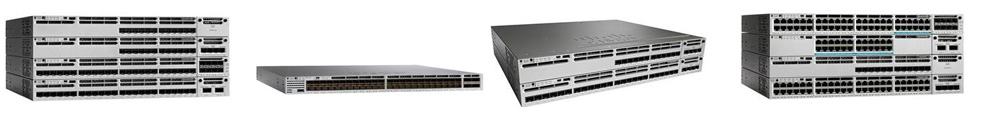

思科WS-C3850-24S-S全光口千兆交换机

　WS-C3850-24S-S Cisco Catalyst 3850 交换机目前提供业界较高的堆栈带宽 480 Gbps 以满足网络需求，包括千兆位桌面和 802.11ac 无线。此交换机在所有端口上提供高性能 24/48 端口 GE 交换机、480 G 堆叠、增强型以太网供电、StackPower、和 Flexible NetFlow 等大量高级功能。
　　Cisco Catalyst 3850 交换机通过扩展有线基础设施的功能、恢复能力、精细服务质量 (QoS) 和扩展性，将 Cisco IOS 卓越性引入无线网络。其提供内置无线控制器功能和 40 G 无线吞吐量，不仅支持每个交换机或堆栈 50 个接入点和 2000 个无线客户端，而且还支持 802.11ac。
　　Cisco Catalyst 3850 交换机可在有线和无线网络中，为安全和策略、应用可见性和控制、网络恢复能力、智能操作及其他方面，实现通用智能服务。此开关可基于无线网络的 SSID、客户端、无线电、应用和公平共享策略等精细信息实现多级 QoS。
　　Cisco Catalyst 3850 的核心是新型 ASIC，其能够根据未来的功能和智能需要进行编程，并保护投资。新型 ASIC 可为有线和无线网络融合 API、软件定义网络 (SDN) 支持和思科单平台套件 (OnePK) 提供基础。

背板：

Performance Numbers for All Switch Models
Switching capacity	176 Gbps on 48-port Gigabit Ethernet model 92 Gbps on 24-port Gigabit Ethernet model 68 Gbps on 12-port Gigabit Ethernet model 640 Gbps on 24-port Multigigabit Ethernet model^* 472 Gbps on 48-port Multigigabit Ethernet model 1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model^* 640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model^* 320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model^*
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	24,000
FNF entries	48,000 flow on 48-port Gigabit Ethernet models 24,000 flows on 12-port and 24-port Gigabit Ethernet models 96,000 flows on 48-port 10 Gigabit Ethernet SFP+ model 48,000 flows on 24-port 10 Gigabit Ethernet SFP+ model 24,000 flows on 12-port 10 Gigabit Ethernet SFP+ model
DRAM	4 GB (8 GB on 48-port SFP+ model)
Flash	2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)
VLAN IDs	4,000

Stacking bandwidth

480 Gbps

DRAM

4 GB (8 GB on 48-port SFP+ model)

Flash

2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)

转发：

Model	Forwarding Rate
WS-C3850-12S	50.5 Mpps
WS-C3850-24T WS-C3850-24P WS-C3850-24S	68.4 Mpps
WS-C3850-48T WS-C3850-48P WS-C3850-48F	130.95 Mpps
WS-C3850-24XU	500 Mpps (80B packets)
WS-C3850-12X48U	460 Mpps (64B packets)
WS-C3850-12XS	227.28 Mpps
WS-C3850-24XS	454.55 Mpps
WS-C3850-48XS	909 Mpps

尺寸和重量：

Model

Dimensions (H x W x D)	Inches	Centimeters
WS-C3850-12S WS-C3850-24S WS-C3850-24T WS-C3850-24P WS-C3850-48T WS-C3850-48P	1.75 x 17.5 x 17.7	4.45 x 44.5 x 45.0
WS-C3850-48F WS-C3850-48U WS-C3850-24U WS-C3850-24XU WS-C3850-12X48U	1.75 x 17.5 x 19.2	4.45 x 44.5 x 48.8
WS-C3850-12XS WS-C3850-24XS	1.75 x 17.5 x 17.7	4.45 X 44.5 x 45.0
WS-C3850-48XS	1.75 x 17.5 x 20.1	4.45 X 44.5 x 51.1
Weight	Pounds	Kilograms
WS-C3850-12S	15.48	7.02
WS-C3850-24S	15.5	7.03
WS-C3850-24T	15.9	7.2
WS-C3850-24P	16.3	7.4
WS-C3850-24U	16.5	7.5
WS-C3850-48T	17.0	7.7
WS-C3850-48P	17.4	7.9
WS-C3850-48F	17.6	8.0
WS-C3850-48U	17.6	8.0
WS-C3850-24XU	17.6	8.0
WS-C3850-12X48U	17.6	8.0
WS-C3850-12XS	12.9	5.8
WS-C3850-24XS	13.5	6.1
WS-C3850-48XS	16.42	7.45
C3850-NM-4-1G	0.66	0.30
C3850-NM-2-10G	0.71	0.32
C3850-NM-4-10G	0.75	0.34
C3850-NM-8-10G	0.74	0.34
C3850-NM-2-40G	0.62	0.28

Forwarding Rate

WS-C3850-12S

50.5 Mpps

WS-C3850-24T

WS-C3850-24P

WS-C3850-24S

68.4 Mpps

WS-C3850-48T

WS-C3850-48P

WS-C3850-48F

130.95 Mpps

WS-C3850-24XU

500 Mpps (80B packets)

WS-C3850-12X48U

460 Mpps (64B packets)

WS-C3850-12XS

227.28 Mpps

WS-C3850-24XS

454.55 Mpps

WS-C3850-48XS

909 Mpps

Dimensions (H x W x D)

Inches

Centimeters

WS-C3850-12S

WS-C3850-24S

WS-C3850-24T

WS-C3850-24P

WS-C3850-48T

WS-C3850-48P

1.75 x 17.5 x 17.7

4.45 x 44.5 x 45.0

WS-C3850-48F

WS-C3850-48U

WS-C3850-24U

WS-C3850-24XU

WS-C3850-12X48U

1.75 x 17.5 x 19.2

4.45 x 44.5 x 48.8

WS-C3850-12XS

WS-C3850-24XS

1.75 x 17.5 x 17.7

4.45 X 44.5 x 45.0

WS-C3850-48XS

1.75 x 17.5 x 20.1

4.45 X 44.5 x 51.1

Weight

Pounds

Kilograms

WS-C3850-12S

15.48

7.02

WS-C3850-24S

15.5

7.03

WS-C3850-24T

15.9

7.2

WS-C3850-24P

16.3

7.4

WS-C3850-24U

16.5

7.5

WS-C3850-48T

17.0

7.7

WS-C3850-48P

17.4

7.9

WS-C3850-48F

17.6

8.0

WS-C3850-48U

17.6

8.0

WS-C3850-24XU

17.6

8.0

WS-C3850-12X48U

17.6

8.0

WS-C3850-12XS

12.9

5.8

WS-C3850-24XS

13.5

6.1

WS-C3850-48XS

16.42

7.45

C3850-NM-4-1G

0.66

0.30

C3850-NM-2-10G

0.71

0.32

C3850-NM-4-10G

0.75

0.34

C3850-NM-8-10G

0.74

0.34

C3850-NM-2-40G

0.62

0.28

产品订购信息：

Product Number	Product Description
Cisco Catalyst 3850 Series
WS-C3850-24T-L	Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately)
WS-C3850-48T-L	Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately)
WS-C3850-24P-L	Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately)
WS-C3850-24U-L	Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately)
WS-C3850-48P-L	Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately)
WS-C3850-48F-L	Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately)
WS-C3850-48U-L	Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, LAN Base feature set (StackPower cables need to be purchased separately)
WS-C3850-24T-S	Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, IP Base feature set
WS-C3850-48T-S	Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, IP Base feature set
WS-C3850-24P-S	Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Base feature set
WS-C3850-24U-S	Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, IP Base feature set
WS-C3850-48P-S	Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Base feature set
WS-C3850-48F-S	Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, IP Base feature set
WS-C3850-48U-S	Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, IP Base feature set
WS-C3850-24T-E	Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set
WS-C3850-48T-E	Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set
WS-C3850-24P-E	Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Services feature set
WS-C3850-24U-E	Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, IP Services feature set
WS-C3850-48P-E	Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Services feature set
WS-C3850-48F-E	Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, IP Services feature set
WS-C3850-48U-E	Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, IP Services feature set
WS-C3850-12X48U-L	Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, LAN Base feature set
WS-C3850-12X48U-S	Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IP Base feature set
WS-C3850-12X48U-E	Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IP Services feature set
WS-C3850-24XU-L	Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, LAN Base feature set
WS-C3850-24XU-S	Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IP Base feature set
WS-C3850-24XU-E	Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IP Services feature set
WS-C3850-12S-S	Stackable 12 SFP Ethernet ports, with 350WAC power supply 1 RU, IP Base feature set
WS-C3850-12S-E	Stackable 12 SFP Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set
WS-C3850-24S-S	Stackable 24 SFP Ethernet ports, with 350WAC power supply 1 RU, IP Base feature set
WS-C3850-24S-E	Stackable 24 SFP Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set
WS-C3850-12XS-S	Stackable 12 SFP+ Ethernet ports, with 350WAC power supply 1 RU, IP Base feature set
WS-C3850-12XS-E	Stackable 12 SFP+ Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set
WS-C3850-24XS-S	Stackable 24 SFP+ Ethernet ports, with 715WAC power supply 1 RU, IP Base feature set
WS-C3850-24XS-E	Stackable 24 SFP+ Ethernet ports, with 715WAC power supply 1 RU, IP Services feature set
WS-C3850-48XS-S	Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC front-to-back power supply 1 RU, IP Base feature set
WS-C3850-48XS-E	Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC front-to-back power supply 1 RU, IP Services feature set
WS-C3850-48XS-F-S	Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC back-to-front power supply 1 RU, IP Base feature set
WS-C3850-48XS-F-E	Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC back-to-front power supply 1 RU, IP Services feature set

Cisco Catalyst 3850 Series

WS-C3850-24T-L

Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply
